19" Equipment Rack Enclosure - 18U - Preloaded w/Shelves and Blanks

EREN-18


The EREN-18 is the first in VMP's new line of equipment rack enclosures.  Fully assembled and welded these units simplify on site installation.  Preloaded with shelves, blanks and fans the EREN-18 comes out of the box ready for your equipment.  Comes standard with a tempered glass front door for viewing your equipment, a double swing rear door for easy access to the back of your equipment and removable side panels this cabinet makes servicing your equipment simple.  Finally with a 1,000 lbs load capacity the EREN-18 can hold anything you put in in.


Click to View Larger Image

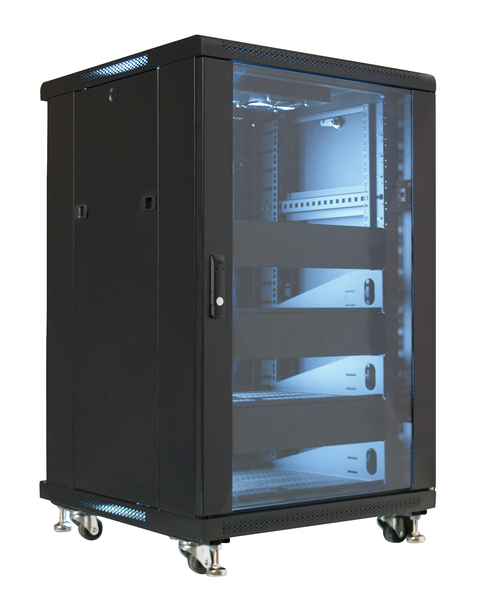

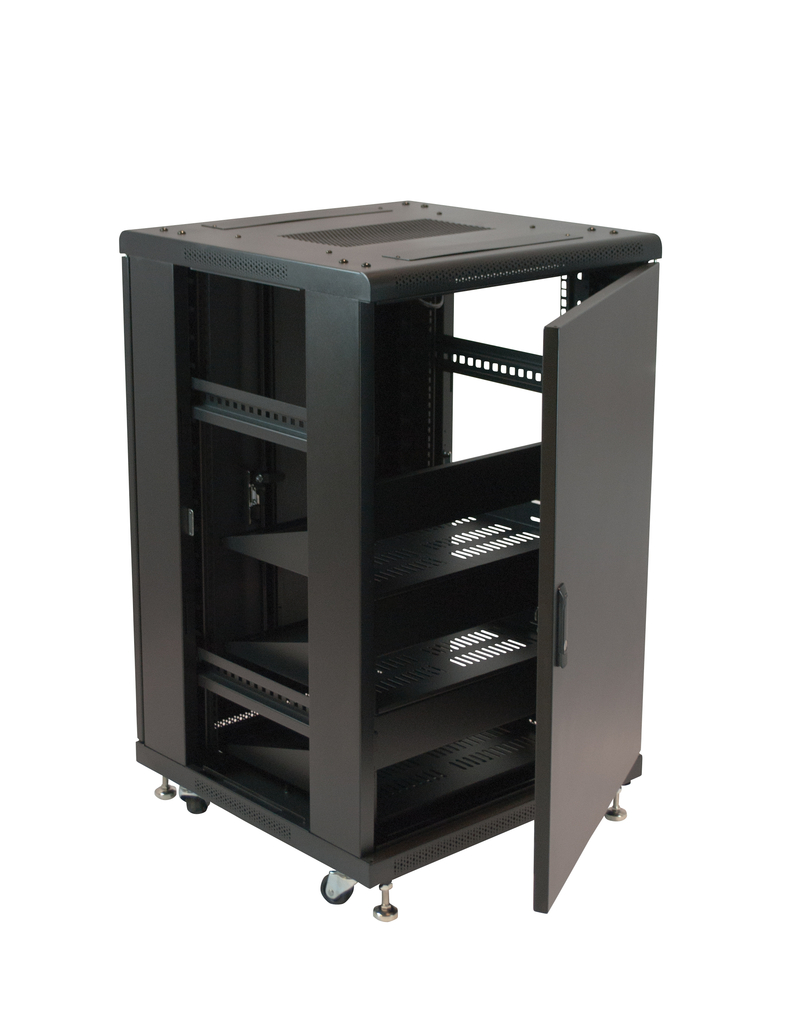

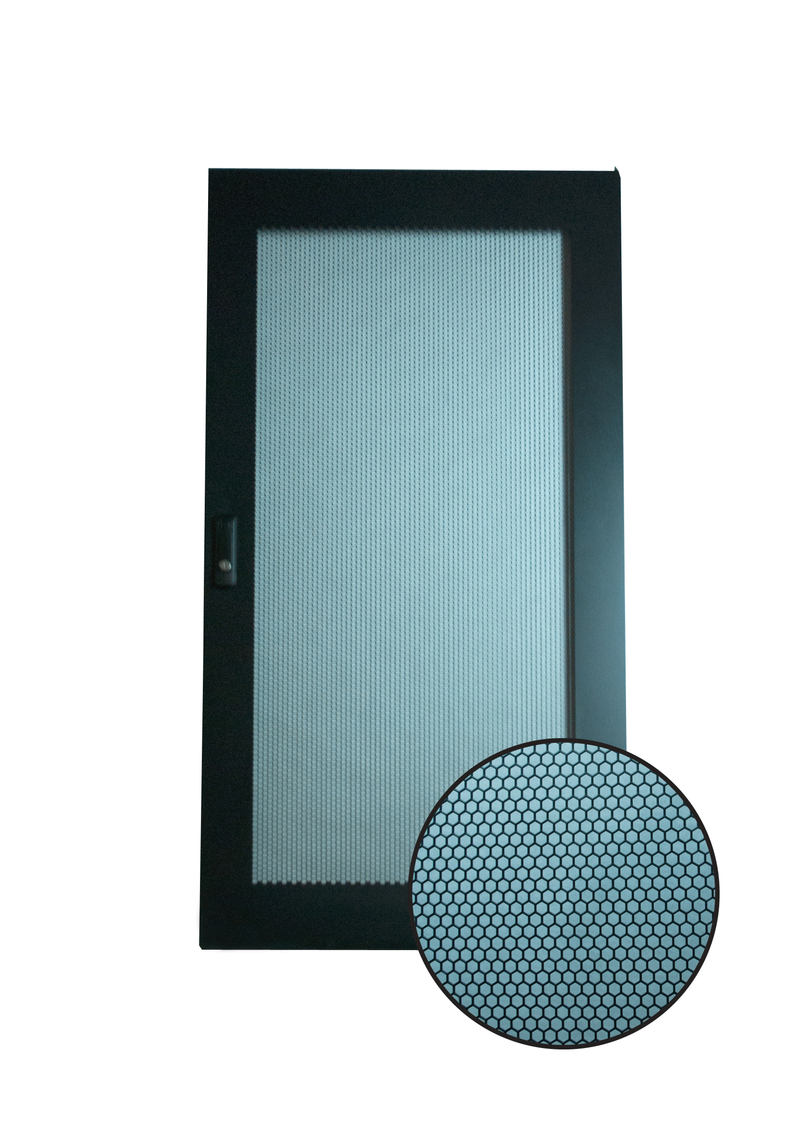

EREN-18 w/ ERENSD-18 EREN-18 w/ ERENSD-18 and side panels removed Perforated Door

Features



  • Welded steel construction
  • Ships fully assembled
  • Works with all standard 19” rack equipment and accessories
  • Overall Dimensions - 39"H x 23.6"W x 23.6"D
  • Usable Depth - 19.875"
  • Preloaded with qty 3 ER-S2UV and qty 3 ER-2B
  • Rails have numbered spaces with standard 10-32 threading
  • Reversible tempered glass front door
  • Double swing steel rear doors
  • Adjustable front and rear rails
  • Vented top and bottom
  • Pre-installed cooling fans (2)
  • Top and bottom cable routing knockouts
  • Reversible hinged front and rear door
  • Removable locking side panels
  • Casters and leveling feet
  • Load capacity – 1,000 lbs
  • Black powder coat finish





EREN-18E - Same as above except without the preloaded ER-S2UV and ER2B




Specifications

UPC:  6-7385312018-0  (EREN-18)

           6-7385312118-7  (EREN-18E)

MSRP:  $922 (EREN-18)

             $836 (EREN-18E)

Product Dimensions (WxDxH):  23.6" x 23.6" x 39"

Product Weight (lbs):  131 lbs  (EREN-18)

                                    113 lbs  (EREN-18E)

Shipping Dimensions (WxDxH):  24.25" x 24.25" x 40.9"

Shipping Weight (lbs):  142 lbs  (EREN-18)

                                      124 lbs (EREN-18E)
