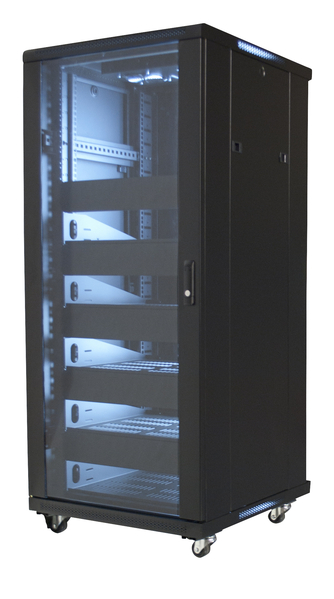

19" Equipment Rack Enclosure - 27U - Preloaded w/Shelves and Blanks

EREN-27


The EREN-27 is the first in VMP's new line of equipment rack enclosures.  Fully assembled and welded these units simplify on site installation.  Preloaded with shelves, blanks and fans the EREN-27 comes out of the box ready for your equipment.  Comes standard with a tempered glass front door for viewing your equipment, a double swing rear door for easy access to the back of your equipment and removable side panels this cabinet makes servicing your equipment simple.  Finally with a 1,000 lbs load capacity the EREN-27 can hold anything you put in in.


Click to View Larger Image

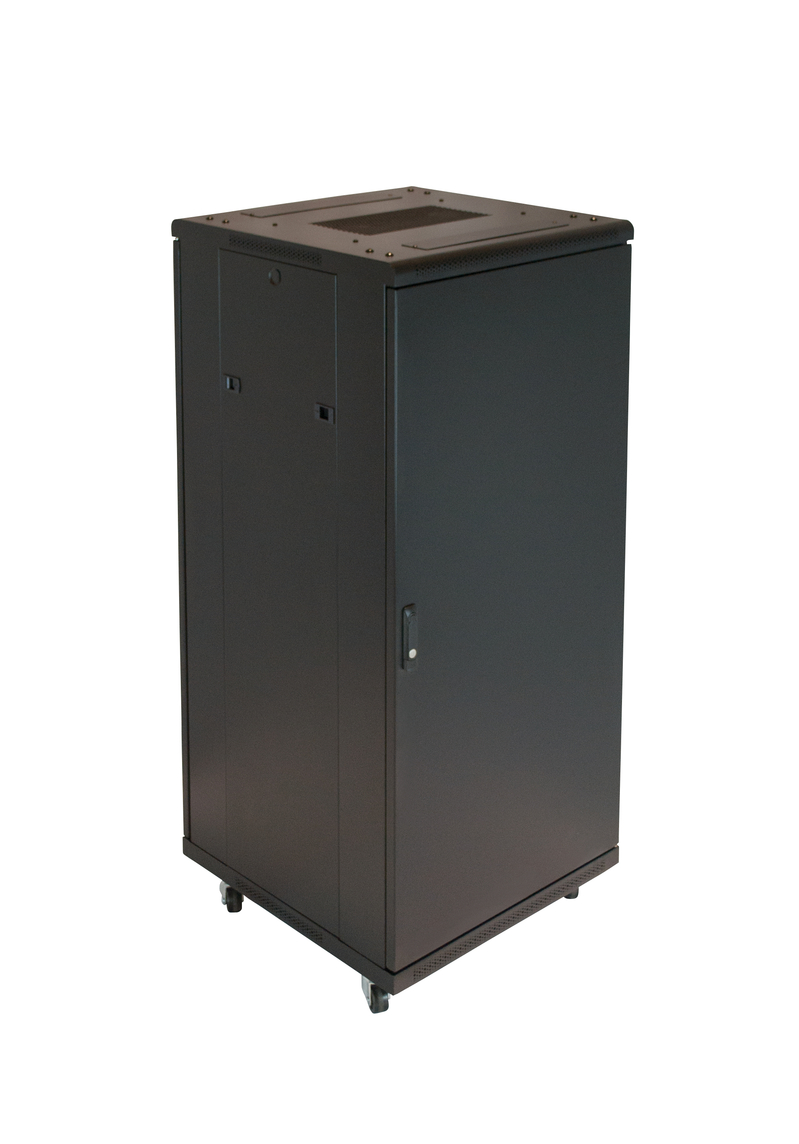

EREN-27 w/ ERENSD-27 Perforated Door

Features

  • Welded steel construction
  • Ships fully assembled
  • Works with all standard 19” rack equipment and accessories
  • Overall Dimensions - 54.8"H x 23.6"W x 23.6"D
  • Usable Depth - 19.875"
  • Preloaded with qty 5 ER-S2UV and qty 5 ER-2B
  • Rails have numbered spaces with standard 10-32 threading
  • Reversible tempered glass front door
  • Double swing steel rear doors
  • Adjustable front and rear rails
  • Vented top and bottom
  • Pre-installed cooling fans (2)
  • Top and bottom cable routing knockouts
  • Reversible hinged front and rear door
  • Removable locking side panels
  • Casters and leveling feet
  • Load capacity – 1,000 lbs
  • Black powder coat finish





EREN-27E - Same as above except without the preloaded ER-S2UV and ER-2B




Specifications

UPC:  6-7385312027-2  (EREN-27)

           6-7385312127-9  (EREN-27E)

MSRP:  $1169 (EREN-27)

             $873 (EREN-27E)

Product Dimensions (WxDxH):  23.6" x 23.6" x 54.8"

Product Weight (lbs):  175 lbs  (EREN-27)

                                    145 lbs  (EREN-27E)

Shipping Dimensions (WxDxH):  24.25" x 24.25" x 57"

Shipping Weight (lbs):  187 lbs  (EREN-27)

                                      157 lbs (EREN-27E)
