19" Hinged Wall Equipment Rack Enclosure - 15 spaces

ERWEN-15E


Beautiful and strong, the ERWEN-15E is a workhorse of a wall mounted rack enclosure.  With adjustable four post rails, removable hinged wall plate and a reversible glass front door the ERWEN-15E has all the features installers are looking for.

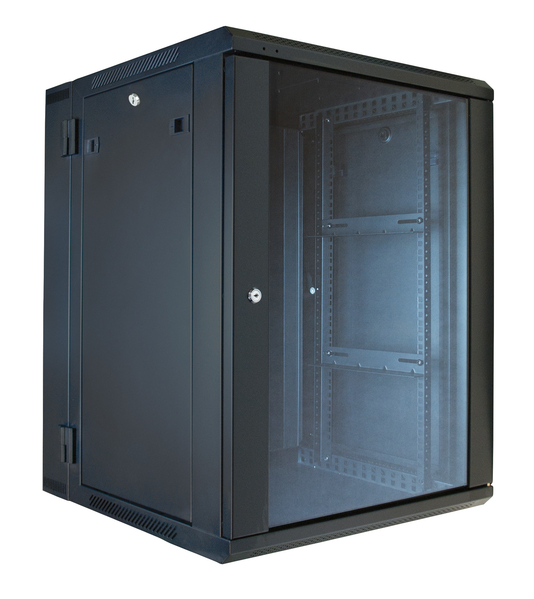

Click to View Larger Image

Features

  • Welded steel construction
  • Ships fully assembled
  • Works with all standard 19” rack equipment and accessories
  • Rails have numbered spaces with standard 10-32 threading
  • Adjustable front and rear rails
  • Vented top and bottom
  • Top and bottom cable routing knockouts
  • Reversible hinged tempered glass front door
  • Removable hinged back panel
  • Removable side panels (with optional locks)
  • Load capacity – 120 lbs
  • Black powder coat finish



Specifications

UPC:  6-7385313115-5  (ERWEN-15E)

MSRP:  $419

Product Dimensions (WxDxH):  24.3" x 21.9" x 30.5"

Product Weight (lbs):  71.3 lbs

Shipping Dimensions (WxDxH):  24.4" x 22.6" x 31.9"

Shipping Weight (lbs):  76 lbs




Downloads




Accessories

  • ERWENFAN: Fan for ERWEN series wall cabinets
  • ERENSL: Side Panel Lock Kit
  • ER-S1U4P: Vented One Space Four Post Rack Shelf
  • ER-SS1U: Rack Mounted Sliding Shelf - 1 Space
  • ER-S2UV: Vented Two Space Rack Shelf
  • ER-S1UV: Vented One Space Rack Shelf
