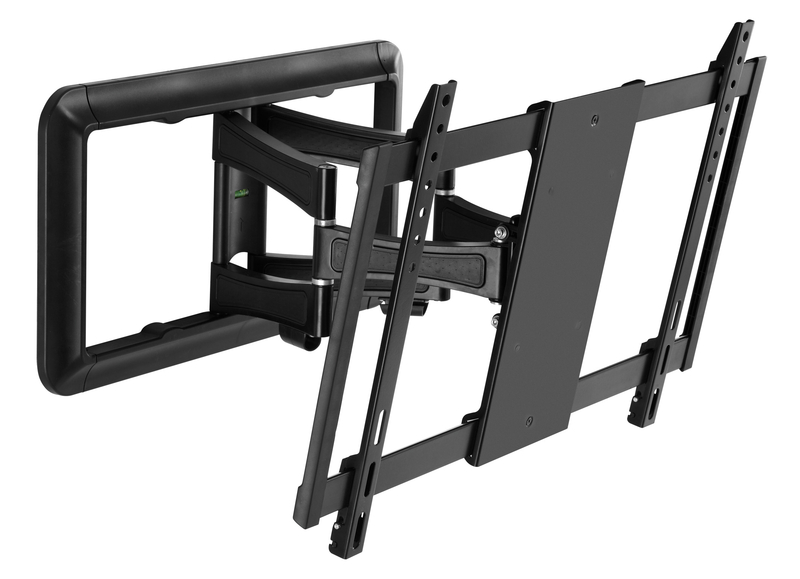

Extra Medium Low Profile Flat Panel Articulating Mount

FP-XMLPAB


The FP-XMLPAB is a low profile alternative for mounting larger flat panel displays. With a closed depth of 1.5" and a fully opened extension of 16.2" along with a fully adjustable 15° tilt, 3° list adjustment and ± 45° of rotation, you can get your flat panel to the optimal viewing angle you need for any room. For added safety and security, the mounting rails accept padlocks for your peace of mind. All this and more makes the FP-XMLPAB the right choice for all of your 32" to 52" flat panel mounting needs.


Click to View Larger Image

Features

  • Holds most 32” – 52” flat panels
  • Maximum mounting hole pattern – 600mm x 400mm
  • Low profile depth of 1.5” when collapsed and 16.2” fully extended
  • Adjustable tilt – -2° to +10°
  • Rotates – ±45°
  • List adjustment – ±3°
  • Integrated cable management system
  • Integrated level
  • Load capacity - 100 lbs
  • Black powder coat finish



Specifications

UPC:  6-7385301640-7

MSRP:  $259.95

Product Dimensions (WxHxD):  27.4" x 17.3" x 16.2"  (fully extended)

Product Weight:  16.8 lbs

Shipping Dimensions (WxHxD):  30.5" x 20.5" x 3.25"

Shipping Weight:  24 lbs




Downloads




Accessories

  • CH-001B: Wall Mount Electronic Component Shelf - 13" x 11" Shelf
  • CH-002B: Wall Mount Electronic Component Shelf - 18" x 13" Shelf
  • VH-003: Wall Mount Electronic Component Holder
