Large Flat Panel Flush Mount

FP-LFB

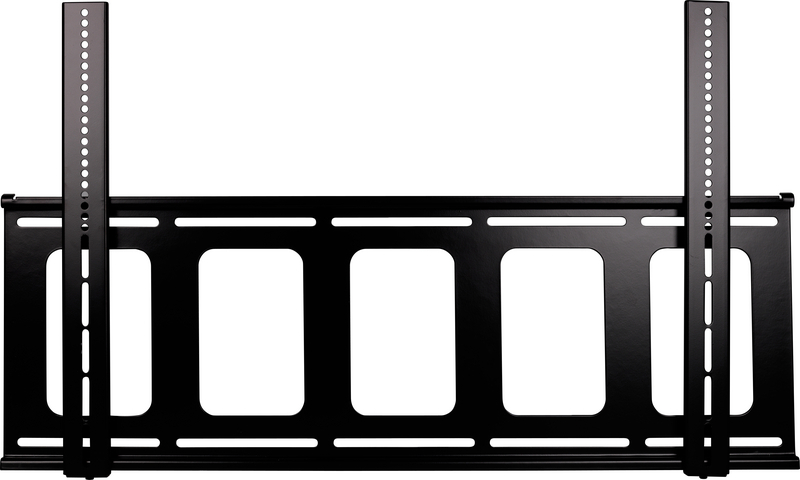

The FP-LFB is a fixed flat panel wall mount that can handle most displays 42" to 90".  The FP-LFB comes in black or silver (FP-LF), has a 180 lbs load capacity and has only a 1.4" mounting depth.  The rails of the FP-LFB can slide left to right for perfect flat panel placement and easy installation.






Click to View Larger Image

Features

  • Holds 42” – 90” flat panels
  • Distance from wall to the back of the flat panel - 1.4”
  • Maximum flat panel hole pattern - 850mm x 500mm
  • Accommodates multiple double gang boxes
  • Load capacity – 180 lbs
  • Black powder coat finish

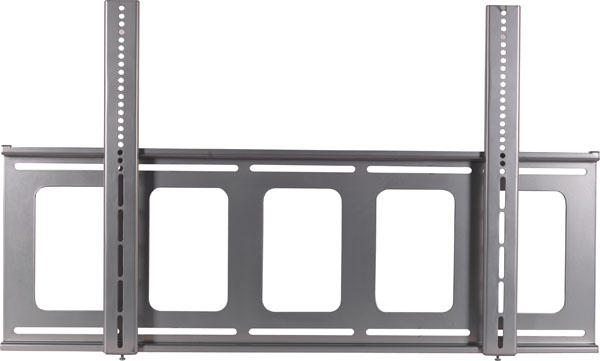

FP-LF Same as above except with silver finish




Specifications

UPC: 6-7385301625-4 (FP-LF)

          6-7385301626-1 (FP-LFB)

MSRP: $119.95

Product Dimensions (WxHxD): 38" x 22.5" x 1.4"

Product Weight: 14.75 lbs

Shipping Dimensions (WxHxD): 38.5" x 13" x 1.6"

Shipping Weight: 18 lbs






Downloads




Accessories

  • : Wall Mount Electronic Component Shelf
  • CH-002B: Large Wall Mount Electronic Component Shelf
  • : Wall Mount Electronic Component Holder
