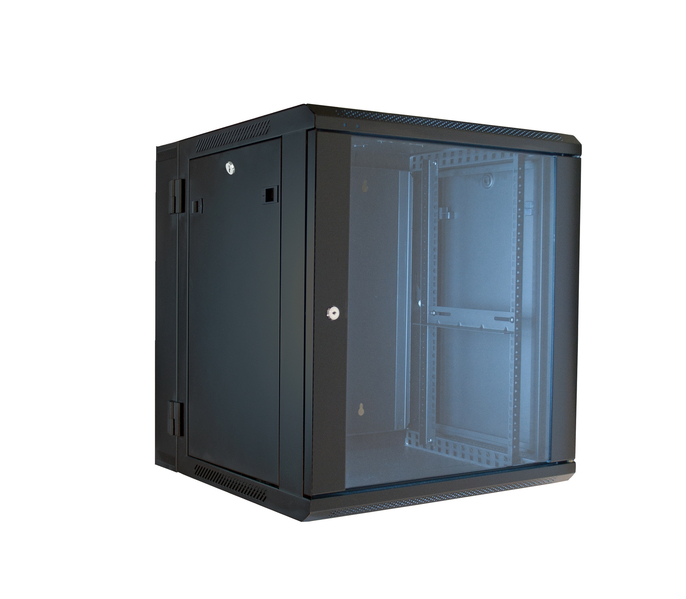

19" Hinged Wall Equipment Rack Enclosure - 12U

ERWEN-12E


Beautiful and strong, the ERWEN-12E is a workhorse of a wall mounted rack enclosure.  With adjustable four post rails, removable hinged wall plate and a reversible glass front door the ERWEN-12E has all the features installers are looking for.


Click to View Larger Image

Features

  • Welded steel construction
  • Ships fully assembled
  • Works with all standard 19” rack equipment and accessories
  • Overall Dimensions - 25.3"H x 24.3"W x 21.9"D
  • Usable Depth - 16"
  • Rails have numbered spaces with standard 10-32 threading
  • Adjustable front and rear rails
  • Vented top and bottom
  • Top and bottom cable routing knockouts
  • Reversible hinged tempered glass front door
  • Removable hinged back panel
  • Removable locking side panels
  • Load capacity – 120 lbs
  • Black powder coat finish



Specifications

UPC:  6-7385313112-4  (ERWEN-12E)

MSRP:  $467.95

Product Dimensions (WxDxH):  24.3" x 21.9" x 25.3"

Product Weight (lbs):  62 lbs

Shipping Dimensions (WxDxH):  24.4" x 22.6" x 26.1"

Shipping Weight (lbs):  69 lbs
