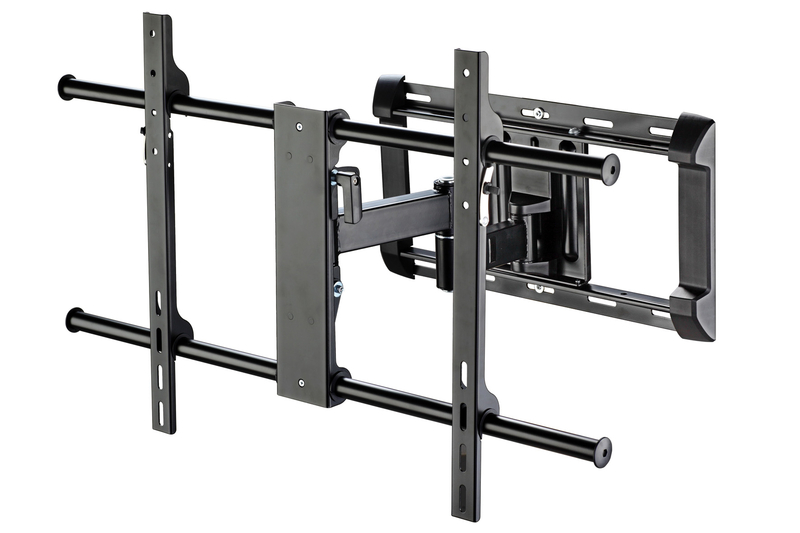

Large Flat Panel Articulating Mount

FP-LWAB


The FP-LWAB is a lower profile alternative for mounting large flat panel displays. With a closed depth of 2.9" and a fully opened extension of 18.2" along with a fully adjustable 15° tilt, 3° list adjustment and ± 45° of rotation, you can get your flat panel to the optimal viewing angle you need for any room. A UL Listing and the capability to accept pad locks, mean you have the peace of mind that the FP-LWAB is both safe and secure. All this and more makes the FP-LWAB the right choice for all of your 42" – 80" flat panel mounting needs
Click to View Larger Image

Features

  • Holds 42” – 80” flat panels
  • Maximum mounting hole pattern – 800mm x 500mm
  • Low profile depth of 2.9” when collapsed and 18.2” fully extended
  • Adjustable tilt – 0° to 15°
  • Rotates – ±45°
  • List adjustment – ±3°
  • Mounting rails accept padlocks
  • Clip based cable management system
  • Load capacity – 150 lbs
  • Black powder coat finish
  • UL listed



Specifications

UPC:  6-7385301639-1

MSRP:  $331.95

Product Dimensions (WxHxD):  34.1" x 21.65" x 18.2" (fully extended)

Product Weight:  22.4 lbs

Shipping Dimensions (WxHxD):  43.25" x 16" x 4"

Shipping Weight:  29 lbs




Downloads




Accessories

  • : Wall Mount Electronic Component Shelf - 13" x 11" Shelf
  • CH-002B: Wall Mount Electronic Component Shelf - 18" x 13" Shelf
  • : Wall Mount Electronic Component Holder
