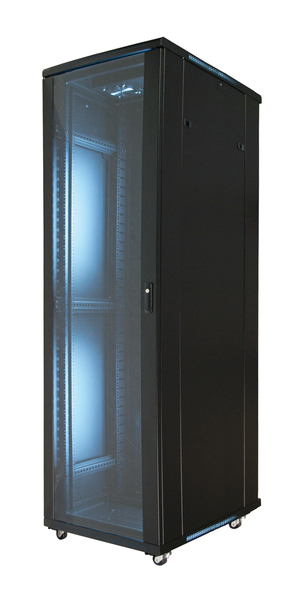

19" Equipment Rack Enclosure - 42U - 33" of Usable Depth

EREN-42E1K


The EREN Series has been designed and engineered for use with a multitude of A/V, Communication and Security components.  Fully assembled and welded, these units simplify on site installation.  With a tempered glass front door for great equipment visibility, a double swing rear door for easy access to the back of your equipment and removable side panels, this cabinet makes installing and serviceing your equipment simple,  Finally with a 1,300 lb. load capacity, the EREN-42E1K is a workhorse you can rely on.
Click to View Larger Image

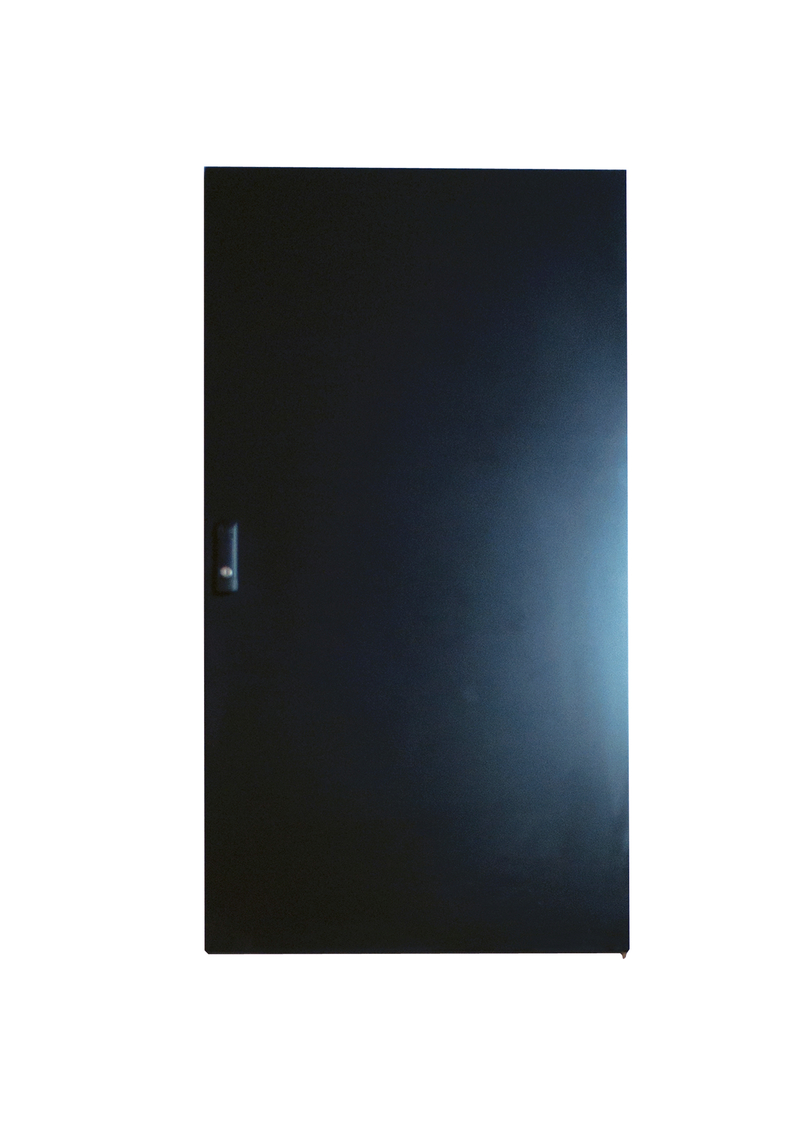

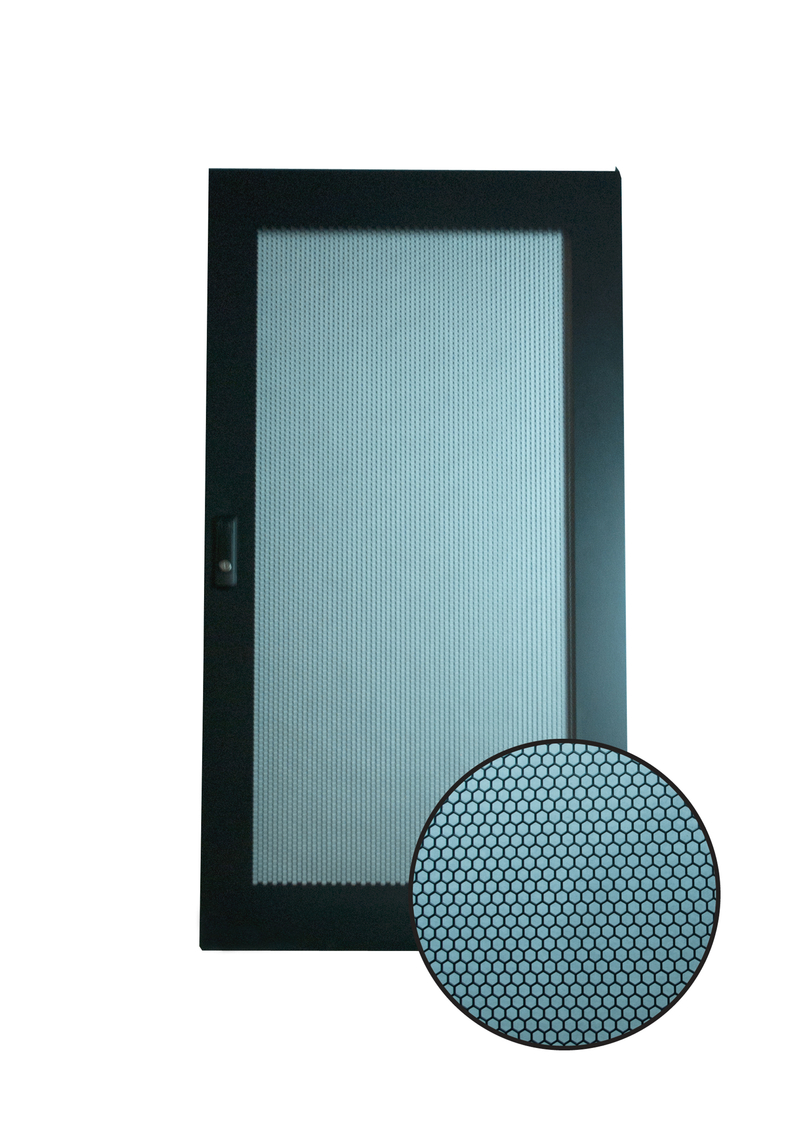

Perforated Door Steel Door

Features

  • Welded Steel Construction/Ships Fully Assembled
  • Works with all standard 19" rack equipment and accessories
  • Overall Dimensions - 81.1"H x 23.6"W x 39.4"D
  • Usable Depth – 33"
  • Rails threaded with standard 10-32 threading
  • Numbered rack spaces
  • Tempered glass front door
  • Double hinged steel rear doors
  • Adjustable front and rear rails
  • Vented top and bottom
  • Pre-Installed cooling fans (4 Fan Tray)
  • Top and bottom cable routing knockouts
  • Reversible hinged front and rear doors
  • Removable locking side panels
  • Casters and leveling feet
  • Load Capacity 1,300 lbs.
  • Black powder coat finish



Specifications

UPC: 6-7385312143-9 (EREN-42E1K)

MSRP: $3144.95 (EREN-42E1K)

Product Dimensions (WxDxH): 23.6" x 39.4" x 81.1"

Product Weight (lbs.): 283 lbs. (EREN-42E1K)

Shipping Dimensions (WxDxH): 24.25" x 40.5" x 83.6"

Shipping Weight (lbs.): 300 lbs. (EREN-42E1K)




Downloads




Accessories
