19" Equipment Rack Enclosure - 18U

EREN-18E

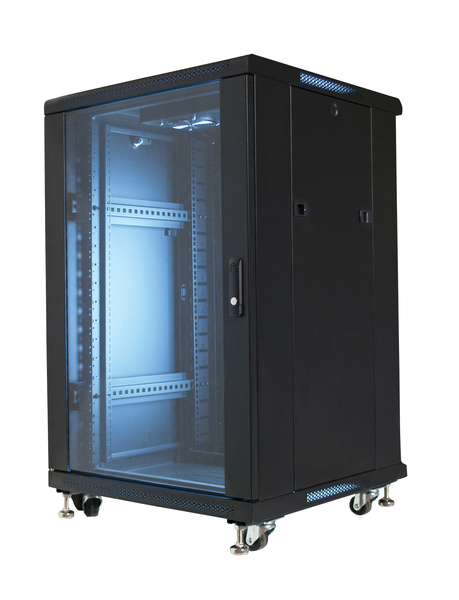

The EREN-18E is a fully assembled and welded equipment rack enclosure designed to simplify on-site installation.  Comes standard with a tempered glass front door for easy viewing of equipment and operations, double swing rear doors for convenient access to the back of your equipment and removable side panels to help make service and inspections a snap.  Finally, with a 1,000 lb. load acapacity, the EREN-18E is ready for even your toughest installations.
Click to View Larger Image

Features



  • Welded steel construction
  • Ships fully assembled
  • Works with all standard 19” rack equipment and accessories
  • Overall Dimensions - 39"H x 23.6"W x 23.6"D
  • Usable Depth - 19.875"
  • Rails have numbered spaces with standard 10-32 threading
  • Reversible tempered glass front door
  • Double swing steel rear doors
  • Adjustable front and rear rails
  • Vented top and bottom
  • Pre-installed cooling fans (2)
  • Top and bottom cable routing knockouts
  • Reversible hinged front and rear door
  • Removable locking side panels
  • Casters and leveling feet
  • Load capacity – 1,000 lbs
  • Black powder coat finish




Specifications

UPC: 6-7385312118-7

MSRP: $1424.95

Product Dimensions (WxDxH): 23.6" x 23.6" x 39"

Product Weight (lbs): 113 lbs

Shipping Dimensions (WxDxH): 24.25" x 24.25" x 40.9"

Shipping Weight (lbs): 124 lbs
