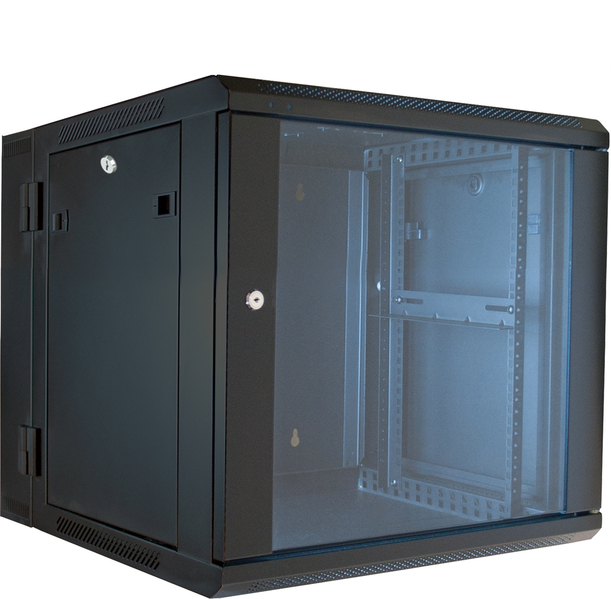

19" Hinged Wall Equipment Rack Enclosure - 9U


Beautiful and strong, the ERWEN-9E is a workhorse of a wall mounted rack enclosure. With adjustable four post rails, removable hinged wall plate and a reversible glass front door the ERWEN-9E has all the features installers are looking for.

Click to View Larger Image


  • Welded steel construction
  • Ships fully assembled
  • Works with all standard 19" rack equipment and accessories
  • Overall Dimensions - 19.9"H x 24.3"W x 21.9"D
  • Usable Depth - 16"
  • Rails have numbered spaces with standard 10-32 threading
  • Adjustable front and rear rails
  • Vented top and bottom
  • Top and bottom cable routing knockouts
  • Reversible hinged tempered glass front door
  • Removable hinged back panel
  • Removable locking side panels
  • Load capacity – 120 lbs
  • Black powder coat finish



UPC: 6-7385313109-4  (ERWEN-9E)

MSRP: $442.95

Product Dimensions (WxDxH): 24.3" x 21.9" x 19.9"

Product Weight (lbs): 60 lbs

Shipping Dimensions (WxDxH): 27" x 25" x 24"

Shipping Weight (lbs): 67 lbs
