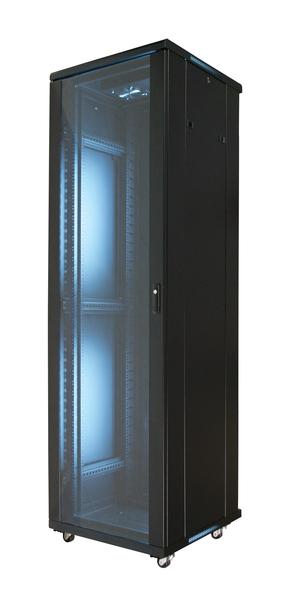

19" Equipment Rack Enclosure - 42U

EREN-42E


The EREN-42E is the first in VMP's new line of equipment rack enclosures.  Fully assembled and welded these units simplify on site installation.  Comes standard with a tempered glass front door for viewing your equipment, a double swing rear door for easy access to the back of your equipment and removable side panels this cabinet makes servicing your equipment simple.  Finally with a 1,000 lbs load capacity the EREN-42E can hold anything you put in in.
Click to View Larger Image

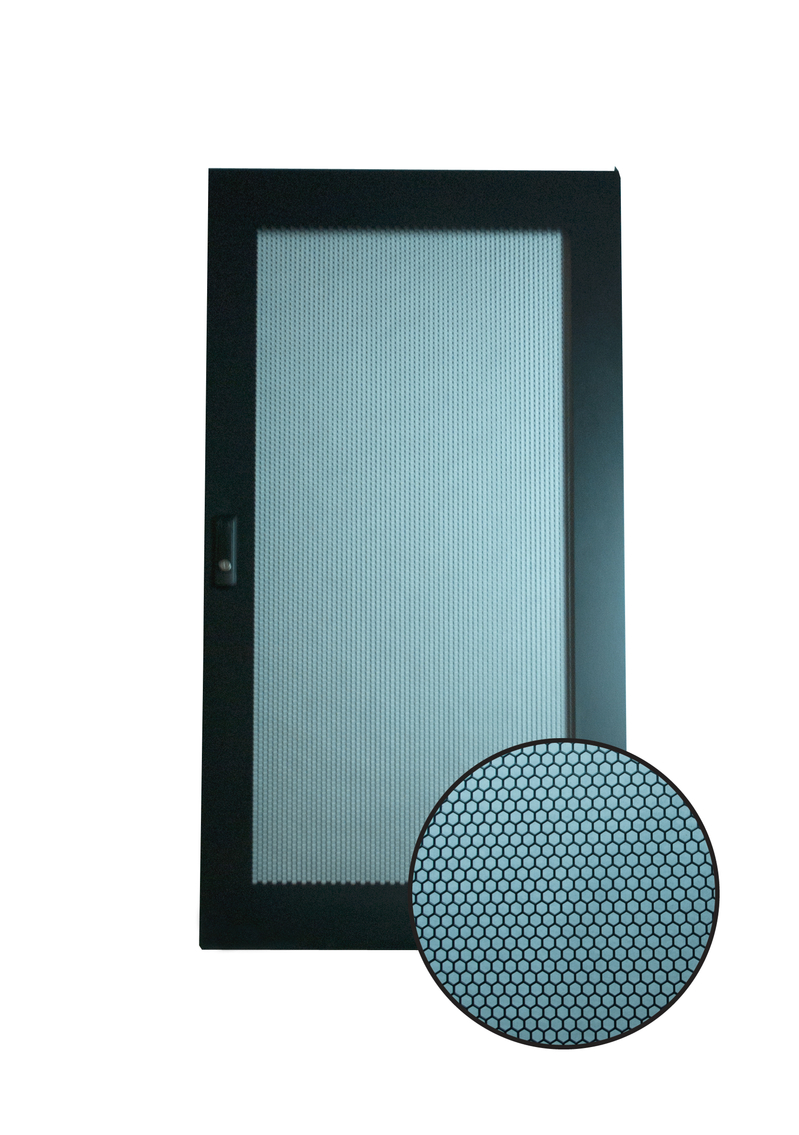

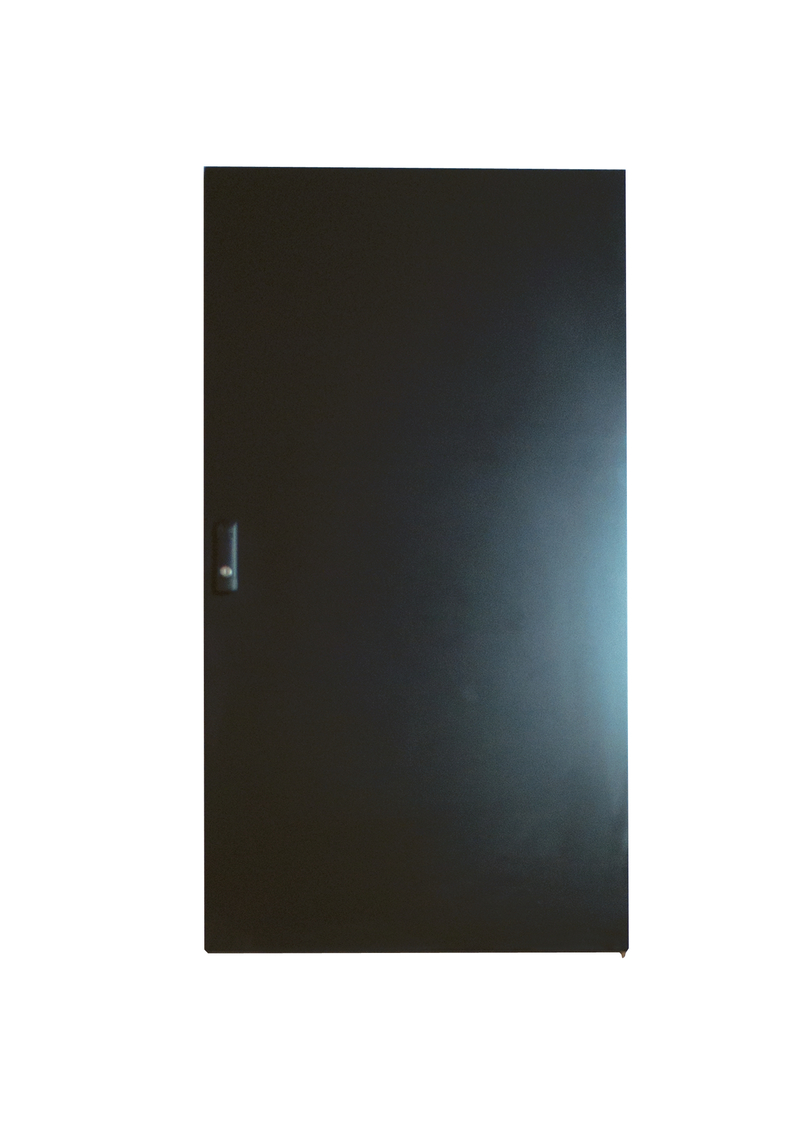

Perforated Door Solid Steel Door

Features

  • Welded steel construction
  • Ships fully assembled
  • Works with all standard 19” rack equipment and accessories
  • Overall Dimensions - 81.1"H x 23.6"W x 23.6"D
  • Usable Depth - 19.875"
  • Rails have numbered spaces with standard 10-32 threading
  • Reversible tempered glass front door
  • Double swing steel rear doors
  • Adjustable front and rear rails
  • Vented top and bottom
  • Pre-installed cooling fans (2)
  • Top and bottom cable routing knockouts
  • Reversible hinged front and rear door
  • Removable locking side panels
  • Casters and leveling feet
  • Load capacity – 1,000 lbs
  • Black powder coat finish



Specifications

UPC:  6-7385312142-2  (EREN-42E)

MSRP:  $1888.95 (EREN-42E)

Product Dimensions (WxDxH):  23.6" x 23.6" x 81.1"

Product Weight (lbs):  209 lbs  (EREN-42E)

Shipping Dimensions (WxDxH):  24.25" x 24.25" x 83.6"

Shipping Weight (lbs):  224 lbs (EREN-42E)




Downloads




Accessories
