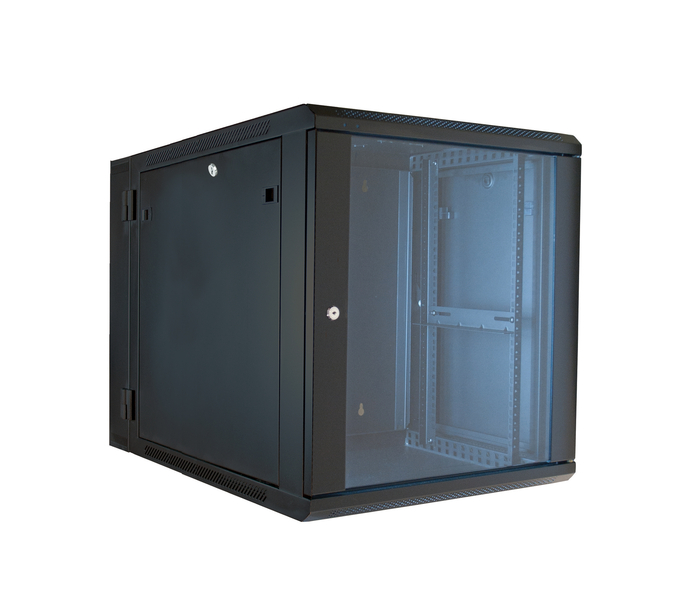

19" Hinged Wall Equipment Rack Enclosure - 12U - 24" Usable Depth


The ERWEN-12E750 is a deeper version of our popular ERWEN-12E wall cabinet.  With 24" of USABLE DEPTH, this is a workhorse of a wall mounted rack enclosure with the added depth you need for installing today's deeper components.  With adjustable 4-post rails, a removable hinged wall plate, reversible tempered glass front door and optional fans for enhanced thermal management, the ERWEN-12E750 has all the features todays professional installers are looking for.

Click to View Larger Image



  • Welded steel construction
  • Ships fully assembled
  • Overall Dimensions – 25.3"H x 24.3"W x 29.625"D
  • Usable Depth – 24"
  • Works with all standard 19" rack equipment and accessories
  • Rails have numbered spaces with standard 10-32 threading
  • Adjustable front and rear rails
  • Vented top and bottom
  • Top and bottom cable routing knockouts
  • Reversible hinged tempered glass front door
  • Removable hinged back panel
  • Removable locking side panels
  • Stabilizing hasp
  • Load capacity – 120 lbs
  • Black powder coat finish



UPC: 6-7385313113-1  (ERWEN-12E750)

MSRP: $590.95

Product Dimensions (WxDxH): 24.3" x 29.625" x 25.3"

Product Weight (lbs):  76 lbs

Shipping Dimensions (WxDxH): 24.4" x 30.325" x 26.1"

Shipping Weight (lbs):  83 lbs
