19" Fixed Wall Equipment Rack Enclosure - 22U

ERWEN-F22E

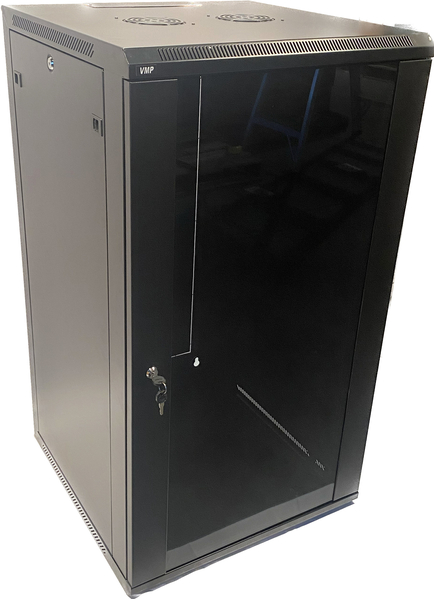

Durable and appealing, the ERWEN-F22E is the workhorse wall mounted rack enclosure that you've been looking for!  The internal 4-Post rails have 22U of numbered rack spaces and are adjustable.  The cabinet also offers a reversible tempered glass front door and locking, removable side panels.  If thermal management is a concern, there is a 2 fan kit available to enhance air movement and keep your components cool.  This feature rich cabinet was designed with functionality and aesthetics in mind and provides the reliability you've come to expect from VMP.
Click to View Larger Image

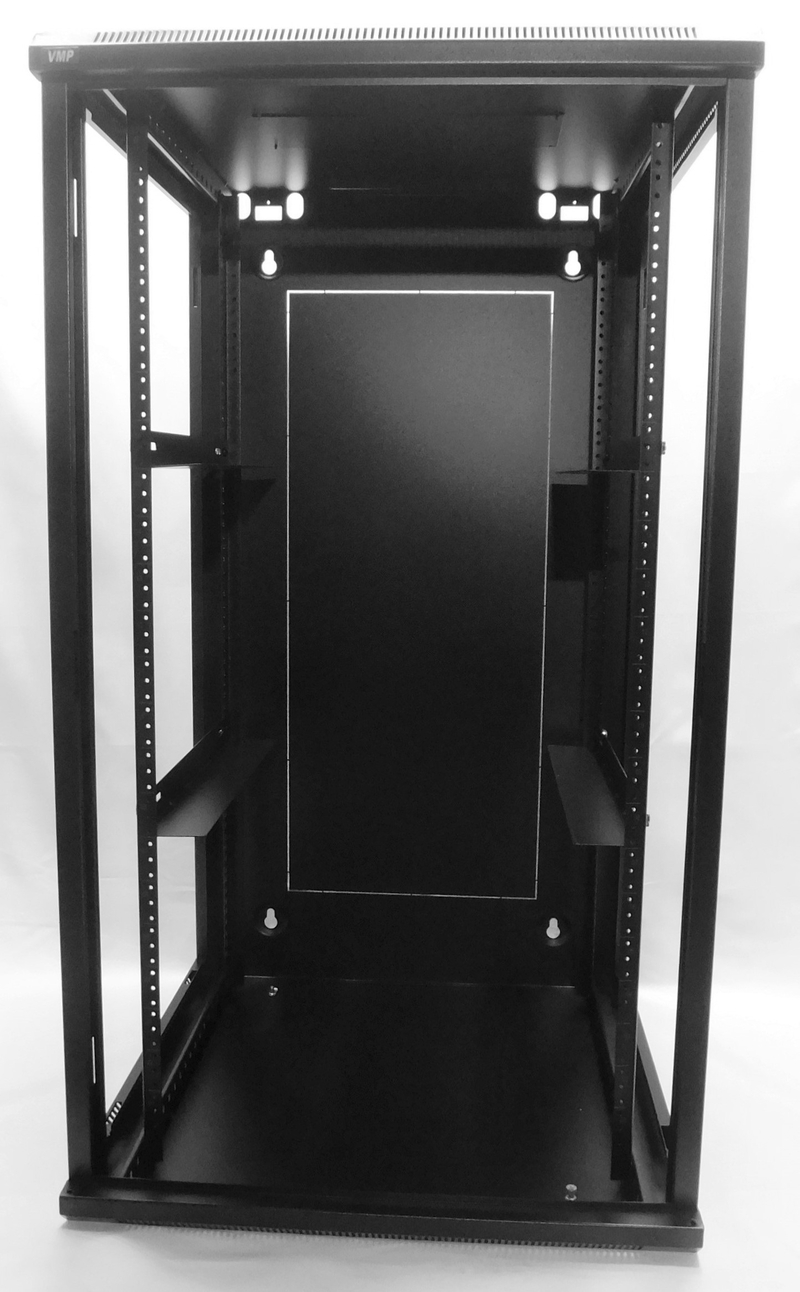

Cabinet shown without doors

Features

- Welded steel construction
- Ships fully assembled
- Overall Dimensions – 42.6"H x 23.6"W x 23.5"D
- Usable Depth – 19.875"
- Works with all standard 19" rack equipment and accessories
- Rails have numbered spaces with standard 10-32 threading
- Adjustable front and rear rails
- Vented top and bottom
- Top and bottom cable routing knockouts
- Reversible hinged tempered glass front door
- Removable locking side panels
- Load capacity – 150 lbs
- Black powder coat finish




Specifications

UPC: 6-7385313129-2 (ERWEN-F22E)

MSRP: $822.95

Product Dimensions (WxDxH): 23.6" x 23.5" x 42.6"

Product Weight (lbs): 102 lbs.

Shipping Dimensions (WxDxH): 25" x 25" x 44"

Shipping Weight (lbs): 105 lbs.
