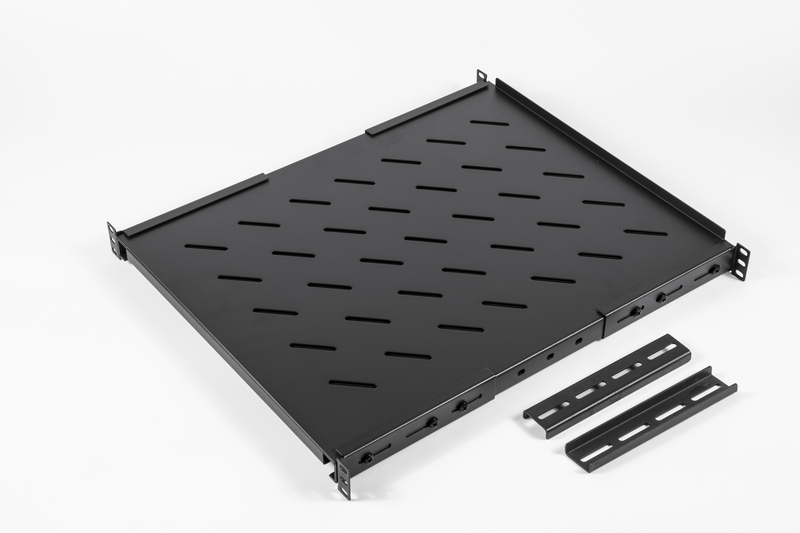

Vented 1U Adjustable 4 Post Rack Shelf - 22" - 40"

ERS1U4P-2240


The ERS1U4P-2240 is a vented one space rack shelf for four post equipment racks. It can accommodate four post racks with depth ranging from 21.5" to 39.5" deep and has a maximum tray width of 17.3". It has a load capacity of 150 lbs. when attached to all 4 posts and includes both #10-32 and #12-24 rack screws to attach the shelf.
Click to View Larger Image

Features

- Fits components up to 16.85"wide

- 1U Racking height (1.75")
- Tray depth adjustable from 21.5" – 39.5"
- Includes 10-32 and 12-24 rack screws
- Load capacity – 150 lbs. (When attached to all 4 Posts)
- Black static resistant powder coat finish




Specifications

UPC: 6-7385313116-2 (ERS1U4P-2240)

MSRP: $181.95

Product Dimensions (WxDxH): 19" x 21.5" to 39.5" (maximum) x 1.75"

Product Weight: 22 lbs

Shipping Dimensions (WxDxH): 22.5" x 19.25" x 2.5"

Shipping Weight: 24 lbs
